What Is the Easiest Mini Split Kit to Install for a Homeowner
Many people have heard how good a mini split can be and may want to install a DIY kit but worry about the difficulty.

There are many YouTube videos and websites with lots of talk about mini split systems and installing one.

One thing many post don’t talk about is how difficult an install may be for someone.

With that in mind and after many mini split installs here is my opinion on the topic.

How Difficult Is It To Install a Mini Split?

  • Drill a 3-Inch Hole in the Wall
  • Running the Line Set
  • Pumping Unit Down into a Vacuum
  • Testing Line set for Leaks
  • Electrical
  • Drilling a Hole in the Wall
  • A hole will need to be drilled into the wall, usually 2-3 inches in size.

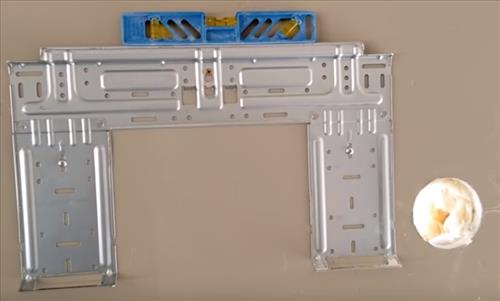

    What Is the Easiest Mini Split Kit to Install for a Homeowner Drilling Hole
    How hard this is will depend on the wall type.

    For example, a cement wall will be harder than a stucco wall to drill a hole through.

    A hole saw is bought that is basically a big drill bit that goes into a drill and cuts out the hole.

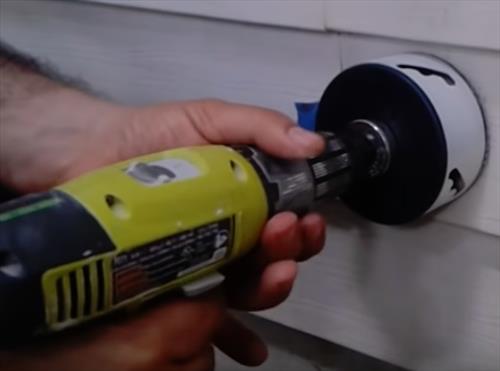

    What Is the Easiest Mini Split Kit to Install for a Homeowner Drilling Hole 2

    Simply buying the correct sized hole saw and a drill is usually all that’s required.

  • Running the Line Set
  • A line-set is two copper lines that run between the inside unit and the outside units.

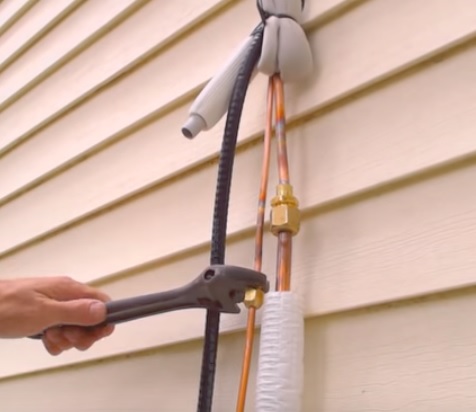

    What Is the Easiest Mini Split Kit to Install for a Homeowner Line Set
    The lines transfer refrigerant that moves heat into or out of a home.

    A line-set will come with any DIY kit and usually will have the ends already flared.

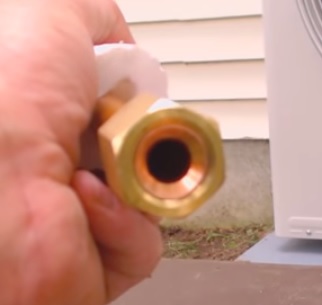

    What Is the Easiest Mini Split Kit to Install for a Homeowner Line Set Flareing
    If a unit does not come with the ends flared or the line-set is shortened, a flare tool is used to re-flare the tips.

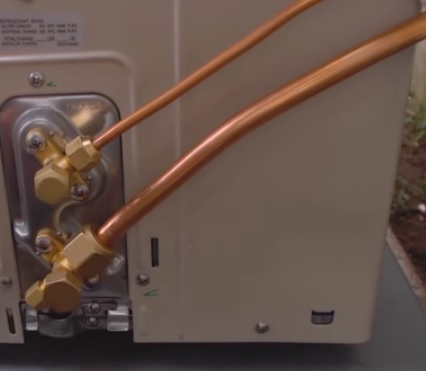

    The line-set runs from the inside unit mounted on the wall to the outside condensing unit.

    The lines are usually soft copper and easy to bend and shape a path between the two units.

    The lines can not be kinked, or the refrigerant will not be able to flow, which transfers heat around.

    This is not that difficult; simply take your time when bending the lines going slowly.

  • Pumping the Unit Down into a Vacuum
  • The line-set will need to be in a vacuum before the refrigerant is released into the system.
    How To Install Senville 9000 BTU 230 Volts Ductless Mini Split Vaccum 2
    The refrigerant is held in the outside unit that is usually released with an Allen key after everything is finished.

    Pumping down the unit requires an HVAC pump and Gauges.

    Using them is not that difficult once some basic concepts of how they work is understood.

    The gauges are used to measure pressure and hook up to the one port mini split units have.

    The pump pulls out all the air and puts the system into a vacuum that it needs to keep the refrigerant clean and uncontaminated.

  • Testing Line Set for Leaks
  • There can be no leaks in the system, or the refrigerant will leak out.

    Some people go to great lengths to make sure there are no leaks with a debate on the best method.

    For example, some will use nitrogen to test the system, which I believe is overkill.

    When the system is vacuumed down with an HVAC pump, if there are any leaks, it will lose its vacuum.

    This is the main way most HVAC techs will test a system.

    Gauges and a Pump or hooked up, and the unit vacuumed out.

    After it is in a vacuum, the pump is turned off, and the unit is left to sit for 20-30 minutes or longer.

    If there is a leak, the unit will lose its vacuum.

    If there is no leak, the vacuum will hold, and the refrigerant can be released.

  • Connecting Electrical
  • The unit will need 110 or 220 volts to operate depending on the unit bought.

    The unit will need 120-volts or 230 volts to operate, depending on the unit bought.

    It also will need to be on a breaker to shut off if there is a problem.

    Every installation will be different for how the electrical is run.

    For example, some may have an electrical panel outside close to where the unit will be and quickly run to the box.

    Another install may be on a detached building and need electrical run to it.

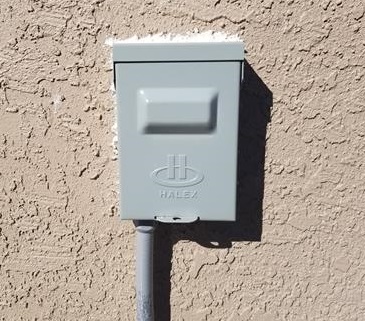

    A Disconnect box will need to be placed close to the outside unit so it can be shut off or on during maintenance or an emergency.

    Read Here for How To Wire up a Mini Split.

What Is the Easiest Mini Split to Install?

After installing many mini split DIY kits, the easiest unit to set up was the MRCOOL Mini Split.
How To Install MRCOOL DIY 12K BTU 17.5 SEER Ductless Mini-Split Heat Pump WiFi Done Son
I do not think it is difficult to use a vacuum pump or gauges, but there are some nice features about an MRCOOL Mini Split.

  • No Need for Vacuum Pump or Gauges
  • Comes with Line-Set in a Vacuum.
  • Mesh Line Set-that does not Kink
  • Leakage Detection
  • 120-Volt or 230-Volt Systems Available

The main big feature that makes the MRCOOL Mini Split easy to install is the Quick Connect line-set that comes sealed.

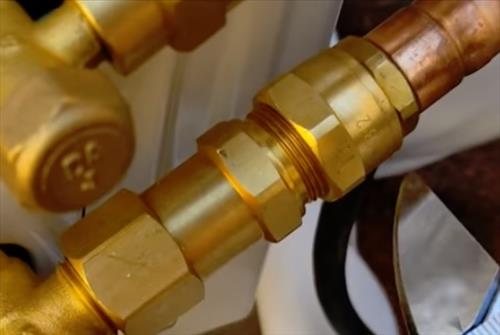

What Is the Easiest Mini Split Kit to Install for a Homeowner Line Set Close Up
The line-set comes already in a vacuum, with the tips having a seal that is broken when bolted on.

This means there is no need for a vacuum pump or gauges with the line simply bolted onto the condensing unit.

The line-set is also made from a steel mesh material with copper tips that resist kinking, unlike other copper line-sets, which can kink if care is not taken.

This is a big plus for anyone who does not want to buy and learn to use an HVAC vacuum pump and gauges.

MRCOOL DIY unit can also detect a leak with a low coolant alarm.

It also operates on 120-volts which is easier for many to hook up instead of 230-volt system.

Read Here For How I Installed a MRCOOL Mini Split

*This site contains affiliate paid links for which a commission earned.
Read More About The MRCOOL Mini Split Here on Amazon or eBay
Available Here on Amazon

Available Here on eBay

Mr. Cool units are specifically made for the DIY homeowner to install a mini split as easily as possible.

The line-set is Quick Connect which is simply bolted onto the outside condenser.
Best Quick Connect Mini Split DIY Kit Mr Cool
It also is a 120-volt system which is often much easier to install compared to 230-volt systems.

An installation will need a bracket mounted on a wall for the inside condenser unit and a hole drilled through the wall for the line-set.
Best Quick Connect Mini Split DIY Kit Mr Cool Drilling
The line set goes through the wall and bolts to the outside condenser.

I installed a Mr. Cool mini split in my garage, and it has worked very well both in the winter heating and summer cooling.
Installing most any Mini Split is not difficult for a handy type of person with basic skills.

Personally, I think all units are easy to install and have no problem running electrical or using HVAC vacuum pumps or gauges.

Of course, not having to pump down a unit into a vacuum is convenient and saves time.

So far after installing the many mini split DIY kits available the MRCOOL unit has many features that make it easier to install.

This is only my opinion, so be sure to read the reviews on Amazon, forums, or elsewhere to be sure a unit is a good fit for you.

Have you installed a DIY mini split unit? Let us know how hard or easy the installation was in the comments below.
