Furnace Thermostat Wiring and Troubleshooting
Furnace thermostat wiring falls in the DIY category that a handy type person can hook up or fix.

Of course, if in doubt, be sure to call a professional.

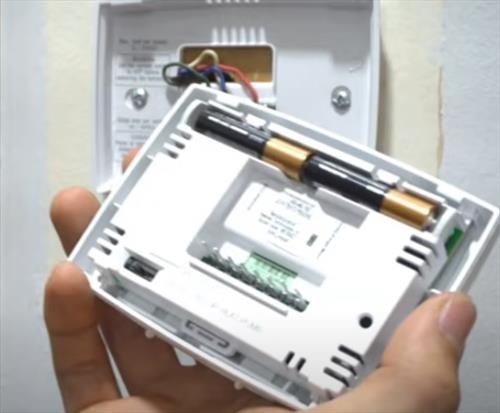

When working with a thermostat, the cover can be snapped off to expose the wiring.
Furnace Thermostat Wiring and Troubleshooting Remove Cover
Before doing any work on the thermostat and wiring, take a picture of the wires and their connections, or write them down. This way, you can always refer back to the original setup.

Keep in mind, even though there is an industry standard for color-coding wires, that doesn’t mean the installers followed it.

How Does a Thermostat Turn on a Furnace?

A thermostat is a switch that can automatically turn on a furnace when a set temperature is reached.

If a thermostat is thought to have a problem, then it can be bypassed with a jumper wire.
Furnace Thermostat Wiring and Troubleshooting Color Codes
Thermostats use 24 volts AC from a transformer to control a furnace.

The transformer steps down 120 volts to the 24 volts the thermostat needs, and sends out the 24 volts on two wires.

The two 24 volt wires go to the R terminal and C terminal inside the thermostat.

Furnace 24 Volt Transformer
Furnace Thermostat 24 Volt Transformer
R is the hot side, while C is the common side of the transformer.

The two 24 volt wires can NEVER touch, or the transformer will short and need to be replaced.

Even though a red wire is supposed to go to R and a black wire to C the colors of the wires can sometimes differ.

Many times installers follow their own color coding so always follow the terminals on the thermostat and not the wiring color.

Both the furnace control board and the thermostat will usually have the same terminal letters.

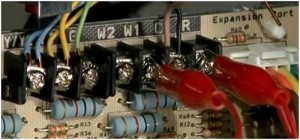

Furnace Thermostat Wiring and Troubleshooting Contorl Board

Example Furnace and AC Thermostat Wiring Diagram

Furnace Thermostat Wiring and Troubleshooting Diagram

Terminal Letters On a Thermostat and What They Control

Furnace Thermostat Wiring
The Hot-wire (24 volts), usually Red from the transformer, is the main power wire to turn on or off furnace components.

For example, if the Red wire is connected to W on the thermostat, the furnace should turn on.

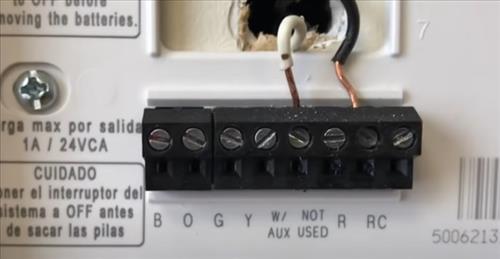

Furnace Thermostat Wiring and Troubleshooting R and W
When the Red-wire is disconnected from W, the furnace should turn off.

The thermostat should automatically complete these connections when a set temperature is reached.

Thermostat Terminals Meanings Explained

  • C = This is the common wire from one side of the transformer which is 24 Volts AC.
  • R = Power, 24 Volts AC (This is the hot side of the transformer)
  • G = Turns the fan on.
  • W = Call to turn on heat.
  • Y = Call for cooling.

Other Possible Terminals Often Not Used

  • V = Used instead of R on some furnaces
  • Rh = Call for heat dedicated
  • Rc = Call for cooling dedicated
  • W2 = Second stage heating
  • Y2 = Second stage cooling
  • E = Auxiliary heating with heat pumps(Heat strips)
  • 0 = Reversing valve

    How To Troubleshooting a Furnace Thermostat

    When the thermostat reaches a set temperature, it connects R and W terminals which will turn on the furnace.

    If a bad thermostat is suspected, these terminals can be jumpered at the furnace to rule it out.
    Furnace Thermostat Wiring and Troubleshooting
    If the furnace starts after jumpering R and W, the thermostat is likely bad.

    Keep in mind; it could also be an open wire; although this is not common, it does happen.

    The wiring connections can go bad for any number of reason but eliminate the thermostat first by changing the battery and making sure it is on the right setting (heat) and temperature to activate the call-for-heat to the unit.

    Then jumper the wires R and W at the thermostat terminals to rule out the wiring.

    Replace the thermostat as the last option after checking everything else.
