How To Install a Service Port On Sealed System Window Air Conditioner

By | June 15, 2024

How To Install a Service Port On Sealed System Window Air Conditioner
Window air conditioners are usually not fixed when broken and most often tossed and replaced.

However, they are fixable, often only needing a low-cost part or a refrigerant recharge to get them working again.

One problem when repairing a window air conditioner is they usually do not come with a service port (Schrader valve) and need one to be installed.

This is an easy process that only needs a piercing valve kit.

You can also solder on a Schrader valve, but it is not necessary and comes down to personal preference.

Items needed Install a Service Port On a Window A/C Unit

  • Wire brush or emery cloth to clean the area.
  • A Bullet Piercing Valve.

Bullet Piercing Valves can be bought at most air conditioning part supply stores or online.

They are low-cost items that make installing a service port on a window A/C unit quick and easy.

Example Bullet Piercing Valve on Amazon
Supco BPV21 Bullet Piercing Valve

How To Install a Service Port on a Window Air Conditioner

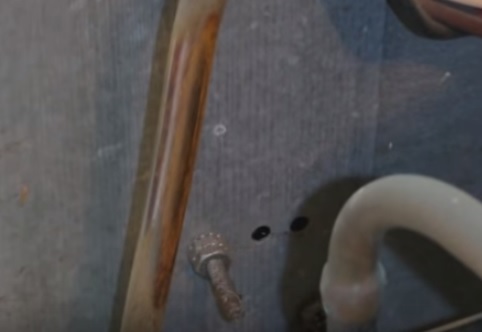

  1. The first step is to find a spot on the copper refrigerant line (Usually low pressure line) that will be easily accessible and clean it with a wire brush or emery cloth.
  2. How To Install a Service Port On Sealed System

  3. Take the piercing valve and hold it on one side of the copper line.
  4. How To Install a Service Port On Sealed System Window Unit

  5. Attach the other side.

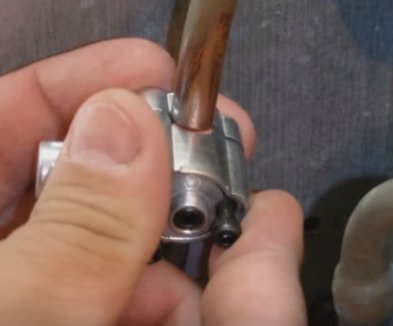

  6. How To Install a Service Port On Sealed System without soldering

  7. Tighten down the outer screws evenly.

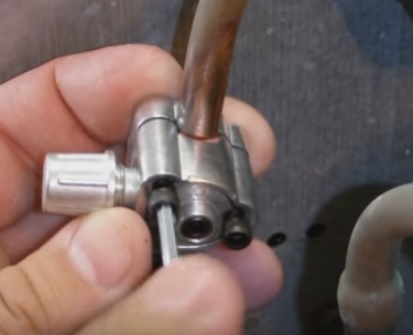

  8. Tighten the Screws

  9. After the outer screws are in place, the center can be screwed in, which will go into the copper line piercing it.

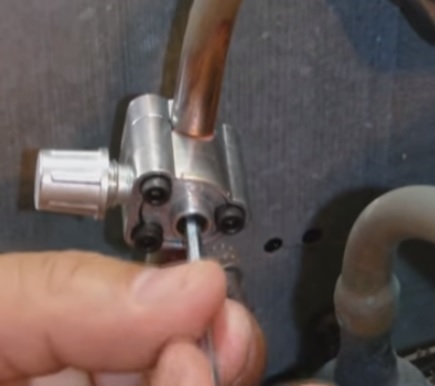

  10. Tighten the Center Screw

You can now attach gauges on the unit and test it or refill as you would any other A/C unit.

There are some HVAC technicians who prefer to solder on a valve, but in my experience, a screw-on valve works just as well.

This is, of course, debatable and is simply a preference that changes from tech to tech.

If you are very good at soldering and can do it quickly and reliably, soldering a piercing valve on may be a better option.

If you just need a quick port to add refrigerant or test a unit, a screw-on piercing valve will work fine.

Screw-on type valves can become loose over time and 4-5 years and may need to be tightened eventually.

Window A/C units that are repaired are usually 5-10 years old, if not older with adding another 4-5 years of life likely the maximum a unit can still function.

A screw-on Schrader valve will more than likely outlast the unit working life span.
