2 Ton Mini Split Overview Questions and Answers

By | May 8, 2022

2 Ton Mini Split Overview Questions and Answers
Mini split units are very popular since they are known to be very efficient and cost less to operate.

There are also DIY kits available for a handy type of person to do an installation.

The systems are very versatile and come in all size ranges from small 3/4 Ton units to large 2 Ton units.

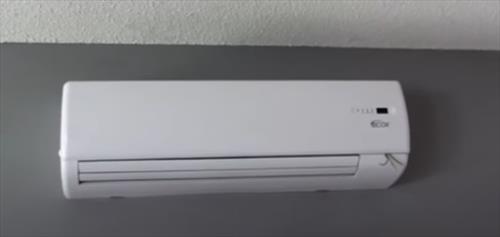

What is a 2 Ton Mini Split System?

What is a 2 Ton Mini Split System
A 2 Ton mini split is a large capacity ductless HVAC system.

Mini split units are ductless air conditioner systems that are split into three main components.

The three main components are the inside air handler, outside condenser, and the line set that goes between the two units.

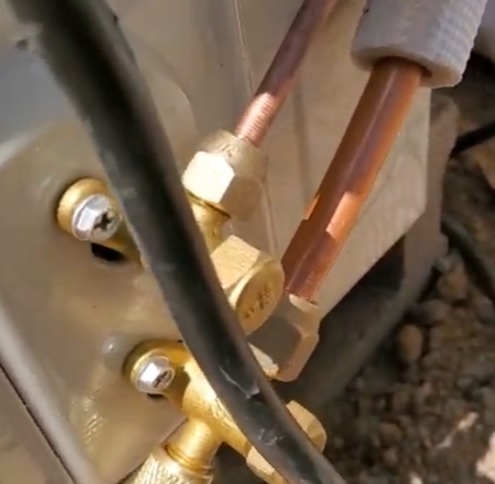

How to Install a 2 Ton Mini Split an Overview Line Set
All three parts work together to cool an open space, with the cooling capacity measured in BTUs or Tons.

The larger the tonnage or BTUs the more cooling and heating capacity the unit has.

How Much Area Will a 2 Ton Mini Split Heat Pump Cool and Heat?

A 2 Ton mini split can heat and cool an area of 1,300 to 1,500 Sq Ft.

Mini split units are ductless and don’t send condition air into rooms past walls.

A large 2 Ton unit would work well in an open space such as a garage or other large room, but not a home with many walls.

A home with many walls should have 2-3 units placed strategically around the home to get the best results.

How Many BTU is a 2 Ton Mini Split?

A 2 Ton mini split is 24,000 BTUs.

24,000 BTUs is rated to cover a room size of 1,300 to 1,500 Sq Ft.

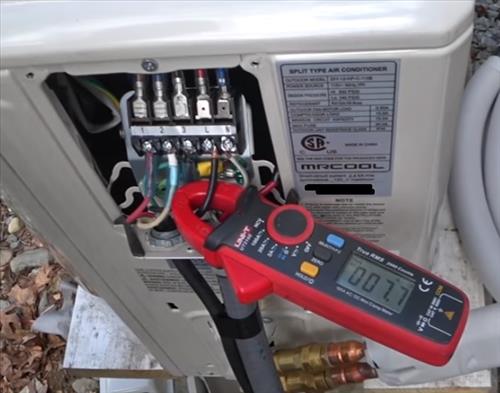

How Many Amps Does a 2 Ton Mini Split Use?

How Many Amps Does a 2 Ton Mini Split Use
HVAC units have different amp draws, which the unit is rated to operate at.

A 2 Ton mini split Amp Draw is roughly between 10-25 amps and will depend on how efficient the unit is.

For example, many new high-efficiency units have a rated 10.5 amp draw.

Many older units from 10-20 years ago often were rated for 25 amps.

Be sure to look at the manual for any HVAC unit to see what the rated Amps are for the unit.

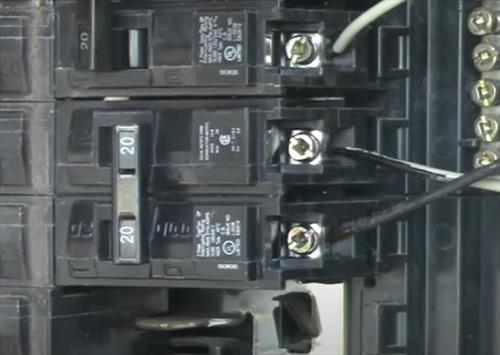

What Size Breaker Does a 2 Ton Mini Split Need?

What Size Breaker Does a 2 Ton Mini Split Need
Most 2 Ton mini split will use a 20-30 Amp breaker, with 20 Amps the most common.

Reading the manual specifications on your unit’s rated breaker size is the only way to be sure what it is rated to use.

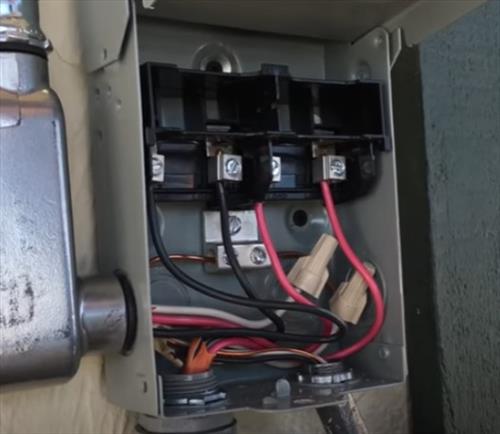

How Many Volts Does a 2 Ton Mini Split Use?

How Many Volts Does a 2 Ton Mini Split Use
Most 2 Ton mini split units will use 220-240 volts but always check the manual for specifications.

The volts will also be labeled on the unit nameplate along with the refrigerant type and rated amps.

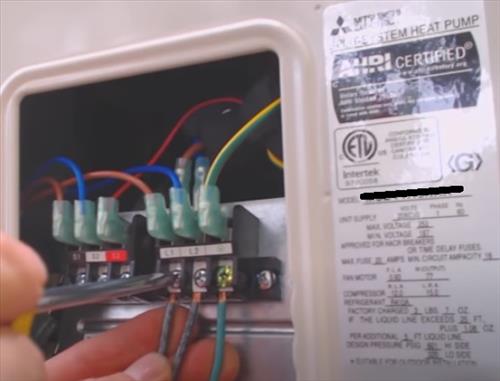

What Gauge Wire Size Does a 2 Ton Mini Split Use?

What Gauge Wire Size Does a 2 Ton Mini Split Use
The wire size for a 2 Ton Mini Split is usually 12-gauge but be sure to check the manual.

The rated wire gauge will be listed in the manual, which should always be followed when installing any HVAC unit.

The wire size can vary from unit to unit, with more efficient models having a lower amp draw.

For example, some new, very high efficient 2 Ton mini split units have 14 gauge wire listed for use in the manual.

Older mini split units from 10-20 years ago were often rated for 10-gauge wire.

Most units now will be rated for 12-gauge but again, be sure to check the specifications for the unit.

How Much is a 2 Ton Mini Split?

The average cost for a 2 Ton mini split is between $1300-$2300.

The cost for a mini split can vary widely depending on the manufacturer and efficiency.

A Seer rating is how efficient a unit is higher the number, the better.

For example, a 25 Seer unit is more efficient than a 19 Seer unit and usually will cost more.

New very High Seer units will cost more compared to older lower Seer units.

Time of year can also cause prices to change since the demand goes up in the summer.

This higher summer demand can cause prices to increase when the weather is hot.

Cost to Install a 2 Ton Mini Split?

The cost will vary from a DIY installation to hiring an HVAC company to install the unit.

The cost to hire an HVAC company to install a mini split will run between $1000-$5000 dollars.

Installation costs from an HVAC company can vary widely and depend on the location, the time of year, and more.

The cost to Install a mini split yourself is much less, with the cost of basic HVAC tools at roughly $200 dollars plus the mini split.

Do it yourself mini split kits are very popular, with many homeowners installing them.

Of course, installing a system is not for everyone, with a professional installer sometimes a better option.

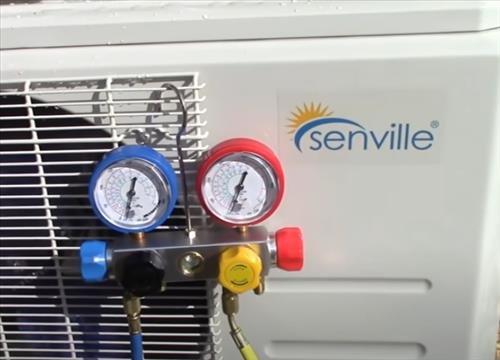

How to Install a 2 Ton Mini Split an Overview

How to Install a 2 Ton Mini Split an Overview
Installing a mini split requires setting up the inside air handler and outside condenser and running a line-set between the two units.

The line-set is two copper lines that carry the refrigerant in a cycle that can cool or heat.

A 2-3 inch hole will need to be cut in the wall to run the line-set.

Electrical will also need to be run to the unit, with most 2- Ton units using 230 volts.

A dedicated breaker should also be installed along with the correct sized wire gauge.

Most units will also require a vacuum pump to set the system in a vacuum.

There are quick-connect type mini split units that already come set in a vacuum, but they do cost more.

Once everything is installed and the line-set in a vacuum, the refrigerant is released, which is inside the outside condenser.

How Much Savings Will a 2 Ton Ductless Mini Split Air Conditioner Heat Pump be on Electric Bill?

Mini split heat pumps are well known to cost less to operate compared to traditional HVAC systems.

How much the savings will depend on how efficient the unit is, which is shown by the Seer rating.

The higher the Seer rating, the higher the efficiency, which will cost less to operate.

For example, a 21 Seer unit will cost less to operate than a 17 Seer unit.

Many home HVAC systems range from 10-17 Seer, with most roughly at 14 Seer.

An older traditional HVAC system from the 1990s often had a rated 10-12 Seer.

Newer traditional HVAC systems often range from 14 to 16 Seer and sometimes higher.

If you are looking to replace a very old efficient10 Seer unit from the 1990s, the saving will likely be very good.

If you are looking to replace a newer 16-17 Seer unit, the savings will be less but may prove worthwhile over time.

The exact saving will vary and also include the local climate and how well the building is insulated.
