Test and Replace the Fan Limit Switch on a Furnace

By | June 21, 2023

Furnace fan fan limit switch

What is a Fan Limit Switch?

A furnace has two switches, a fan limit switch and a high limit switch; these switches can be separate or in one package called a combination switch.

High limit switch
A high limit control switch will turn off the gas to a furnace if the temperature becomes too high.

For example, if the blower motor stopped running, then no air would move through the unit. The flames would raise the temperature inside the unit and have no place to go getting hotter and hotter. As a safety, the high limit switch turns the gas off when the temperature becomes too high.

Fan control limit switch
The fan switch reads the temperature inside a furnace and, once the temperature becomes warm enough, turns the blower motor on, sending warm air into a home. This is used so that cold air is not blown into a house, waiting for the gas flames to heat up enough before the blower turns on.

Depending on the furnace, these two switches can be separate or together in what is called a combination switch.

Some furnaces will have two or even three high limit switches wired in series and checking the temperature at different points in the furnace.

Things To Check First Before Replacing a Fan Limit Switch

  • Furnace Filter
  • Test and Replace the Fan Limit Switch on a Furnace 2021

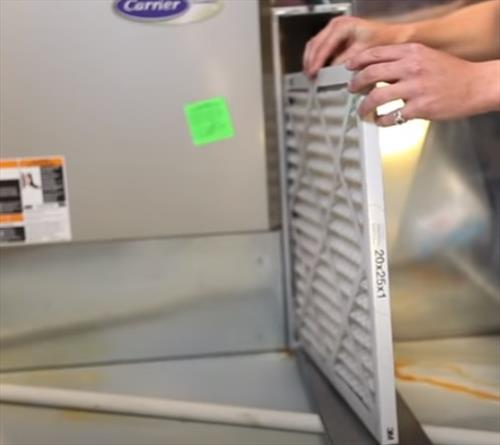

    A clogged up furnace filter will block airflow into a furnace and raise the temperature inside it. If the temperature inside the unit becomes too high the High limit switch will turn the gas off to the unit. Be sure the filter is good.

  • Blower Motor
  • Test and Replace the Fan Limit Switch on a Furnace Blower Motor

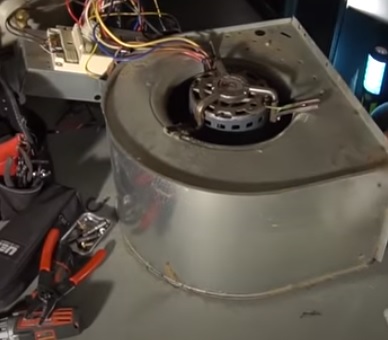

    The next thing to check is if the blower motor is working or not. If the blower motor is not working and no air is being blown through the unit it will overheat and the high limit switch will turn the gas off.

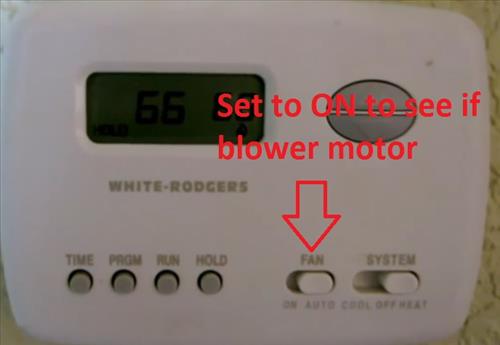

    One way to check this is to go to the thermostat and turn the FAN setting from AUTO to ON. If the blower motor blows air out the vents when manually set to ON then you know that the blower motor itself is good and something else such as the limit switch is causing the problem. If the blower motor doesn’t turn on then that doesn’t mean the motor is bad, other components can cause a blower motor to stop working.
    thermostat blower motor test
    Before testing the limit switch, power off the furnace, wait a few seconds, and power it back on. Some furnaces will try a set number of times to start (Usually three); if it fails, then it will have to be reset with power off before it works again.

    Keep in mind other things can also cause this problem; we are simply trying to eliminate the blower motor and filter as possible problems, as these are the most common.

To quickly rule out the thermostat read this post.

Types of Fan Limit Switches

  • Electro-Mechanical

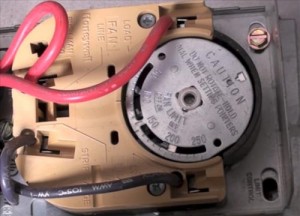

  • Old furnace fan electromechanical limit switch

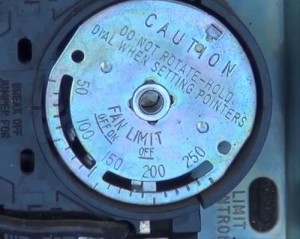

    There are different types of limit switches; the first is the electro-mechanical switches that have a circular dial with a low mechanical set-point and a high set-point that can be adjusted. With these types of switches, one side will have 120 volts for the fan, and the other side will have 24 volts for the gas valve. To test it, a multi-meter will have to be used to see if there is continuity when it reaches the preset temperatures on the low and high sides.


  • Solid State

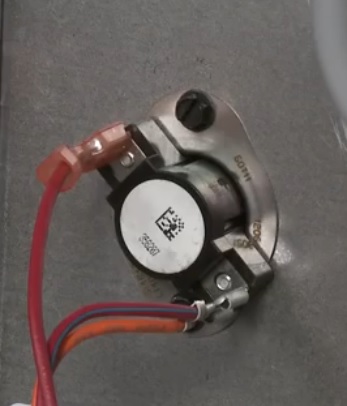

  • Furnace high limit switch
    Another common type is the solid-state high limit switch which is smaller a circular in design. The solid-state switches sometimes have a reset button that should be checked for before replacing. These also should be tested with a multi-meter for continuity. Although not recommended, some service techs in the field will use a jumper wire to jump the connections on these types of limit switches to see if the switch has gone bad. Don’t use a jumper switch unless you know what you are doing.

If both the blower motor and limit switch test is good, then other possible problems may be the contactors, circuit board, gas valve, and possibly the thermostat.

Testing the Fan Limit Switch

Once you know that the blower motor is working and the filter is clean, then the limit switch will need to be tested.

Both switches, Electro-Mechanical or solid-state, can be tested with a multi-meter to see if they are working.

In a multi meters continuity setting, either switch can be tested if they are good or have failed.

Where Can You Buy a Fan Limit Switch?

Fan limit switches can be bought at an HVAC supply store or online.

Some HVAC supply stores do not sell to the public because of the high returns, while others will but at elevated prices.

If you can wait a few days, I would suggest buying from Amazon or eBay as they have a big selection to choose from.

Have you had an issue with a furnace fan limit switch? Let us know your thoughts below.

Category: Furnace repair

About Aaron H. Benetti

Aaron H. Benetti an HVAC technician who has worked in the field since 1991. He began his career as an HVAC installer and later began doing troubleshooting and repairs. Around 2010, he began to write books on HVAC topics, mainly tutorials and how-to information. Currently, Aaron works as an HVAC tech and also writes many articles and posts for websites as well as books and videos on HVAC topics.
