Evaporative Swamp Cooler Switch Wiring

By | May 2, 2023

Evaporative Swamp Cooler Switch Thermostat Wiring 2020
The wiring of a swamp cooler is not complex, but if you have never wired up a motor before or feel uncomfortable with electricity, it is advisable to hire an electrician to wire up your cooler.

A swamp cooler needs power to run two things.

  • Blower Motor
  • Water Pump

The water pump is what pumps water up to the cooling pads and is almost always 110/120 volts AC, and like any 110/120-volt appliance, it simply needs to be plugged into work.
Swamp Cooler Switch Wiring Overview 7
It will operate like any 110/120-volt appliance once it is plugged/wired into a cooling unit.

A blower motor blows air into a building and can be either 110/120 volts AC or 220/230 volts AC, and can also have connections for low and high speeds.

Here is an example of the typical wiring of a swamp cooler switch. Wiring can change between different manufacturers.

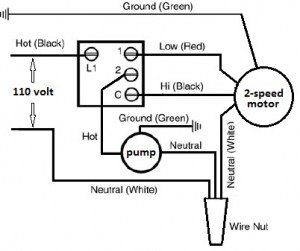

Example Evaporative Swamp Cooler Switch Wiring Diagram

Be sure to always follow the schematics from the manufacturer for any motor or switch.
Swamp Cooler Switch Wiring Overview
The common (white) wires are usually all tied together in a wire nut.

Swamp cooler motors can be 1-Speed usually labeled only Low, and 2-Speed usually labeled both Low and High.

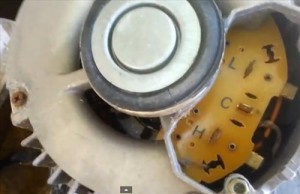

Here is a picture of a swamp cooler blower motor with the leads for Hi, Low, and Common labeled H, L, and C.
Evaporative Swamp Cooler motor hi lo wiring
When voltage is applied to the low side of the windings in the motor, it will turn the motor slower. When voltage is applied to the high side, the windings in the motor will turn it faster.

Common Evaporative Swamp Cooler Wiring Color Codes

  • Red = low
  • Yellow = Pump
  • Black = Hot Wire
  • White = Common Wire (Neutral)
  • Green = Ground Wire

The hot wire (black) goes through a switch to the motor.

The common wires (white) are all tied together to complete the circuit when the switch is flipped.

An evaporator switch is the most common way of controlling a swamp cooler, although thermostats can also be bought to control a cooler.

Single switches are also sometimes used with a single motor speed, and the pump is simply tied into the switch.
How to wire a evaporator switch

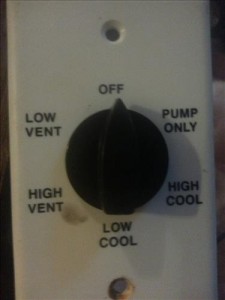

An evaporator cooler switch is a much better option since it can change from low to high speed as well as fan and pump only.

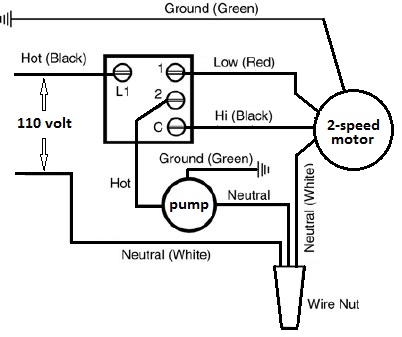

Example Swamp Cooler Switch Wiring Schematic.
Evaporative Swamp Cooler Switch Thermostat Wiring 2020

The above is a basic wiring schematic for a swamp cooler switch. (Always follow the schematics that come with the switch that is bought, this is only an example.)

On the left side is the wiring coming from a breaker with Black (hot), White (common), and Green (ground).

Ground: The Ground wire is connected to all the grounds with a wire nut.

Common: The common (neutral) wires, usually white, are all connected together, including the common side of the water pump.

Hot: The Black wire or hot side is connected to the switch and will give power to the proper setting when the switch is turned.

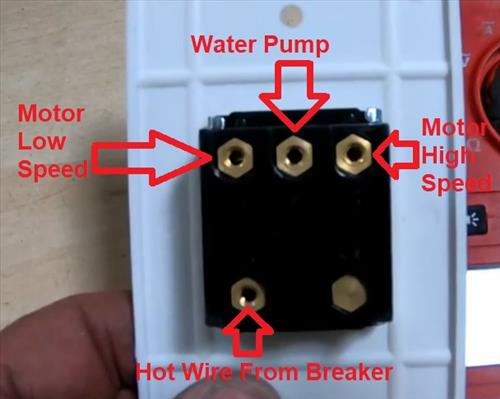

Here is an example of a 110/120-volt swamp cooler switch that is wired in.
Swamp Cooler Switch wired in

  • L1: The hot wire coming from a breaker.
  • 1: The Red wire is coming from low side of blower motor.
  • 2: The Yellow wire is going to hot side of water pump.
  • C: The Black wire is going to high side of blower motor.

The switch will have the low and high sides of the blower motor connected to it along with the hot side of the water pump.

As you can see from the simple diagram above, the only real worry to focus on is wiring the hot side correctly into the switch.

The hot wire is from the breaker and is usually a black wire. The white wire from a breaker is usually common.

The wires coming from the high and low sides of the motor need to be connected properly as well as the hot side from the water pump.
Basic Evaporator Switch wiring schematic.
Since the common wire (white wire) completes the connection, it does not need to run through the switch; the same with the ground (green) wire.
Evaporative Swamp Cooler wire color codes

Keep in mind that wiring color coding is not always followed. While it is supposed to be followed, Black (hot), White (Common), it is always a good idea to double check. Especially in older homes where the wiring may not have been done correctly.

If you are replacing a switch or doing a new install from scratch yourself, this will not be a problem, as you will be able to spot if the wrong wire color coding is being used.

Where Can a Swamp Cooler Switch be Bought?

Swamp cooler switches can be bought at any hardware store or online at Amazon or eBay.

If you have an old broken switch, it is usually best to match it to the same or similar replacement switch, which will make installation easier.


Category: HVAC how to

About Aaron H. Benetti

Aaron H. Benetti an HVAC technician who has worked in the field since 1991. He began his career as an HVAC installer and later began doing troubleshooting and repairs. Around 2010, he began to write books on HVAC topics, mainly tutorials and how-to information. Currently, Aaron works as an HVAC tech and also writes many articles and posts for websites as well as books and videos on HVAC topics.
